Understanding the Role of Electrical Substation Transformers in Grid Architecture

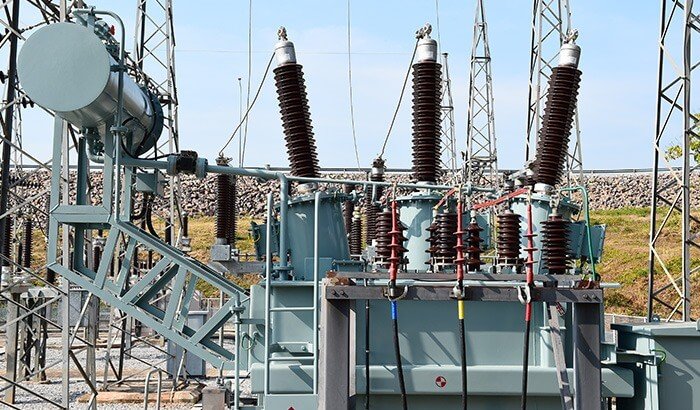

Electrical substation transformers operate at the nexus of power transmission and distribution networks, performing voltage transformation while maintaining system stability under varying load conditions. The installations have special considerations that distinguish them as compared to standard distribution transformers such as more demanding levels of fault current, protection coordination needs and reliability requirements.
The development of grid structure into distributed generation and integration of renewable energy sources has completely changed the working paradigm of transformer substation installations. New substations need to support two-way power flows, address harmonic distortion caused by inverter-based generation and voltage control with load profiles that are becoming more volatile. This transition requires an advanced knowledge of the transformer behaviors beyond conventional nameplate ratings.
Modern substation transformer design requirements have to consider non-linear loads, possible geomagnetically induced currents and the thermal cycling nature of renewable generation profiles. The selection system has become integrated with recent modeling tools, such as finite element analysis in determining the magnetic field distribution and computational fluid dynamics on cooling system optimization.
Key Design Parameters for Transformer and Substation Integration
Impedance Matching and System Coordination
The design of electrical transformer substation components is directly affected by the impedance characteristics, which affect the fault current, voltage regulation and parallel operation. There is always a tradeoff between the competing needs of choosing optimal impedance, as lower impedance enhances voltage regulation, but also raises fault currents, and can be larger than switchgear rating.
The modeling of impedance conditions under different scenarios to determine their effects on the protection coordination and the arc flash hazard can now be done using system studies and their complex software platforms. These analyses take into account not only steady-state conditions, but also transient effects, such as ferroresonance susceptibility and inrush current levels.
Cooling System Architecture and Efficiency Optimization

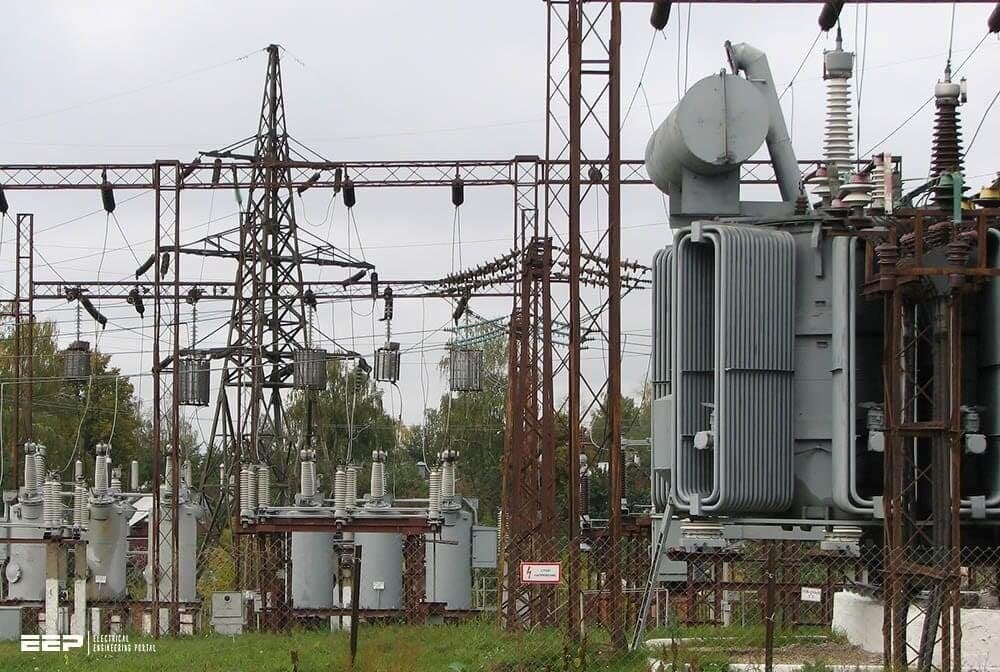

Thermal management represents a critical design consideration for transformer and substation reliability. The selection between ONAN, ONAF, OFAF, and OFWF cooling modes involves complex trade-offs between capital costs, operating expenses, and maintenance requirements. Each cooling methodology presents distinct advantages depending on ambient conditions, load patterns, and space constraints.
Modern cooling system designs increasingly incorporate variable-speed pumps and fans, enabling dynamic thermal management based on real-time loading and ambient conditions. This approach optimizes energy consumption while extending insulation life through reduced thermal stress. Advanced monitoring systems track top oil temperatures, winding hot spots, and cooling system performance, enabling predictive maintenance strategies.
The integration of synthetic ester fluids as alternatives to mineral oil introduces additional design considerations. While offering superior fire safety and environmental characteristics, these fluids exhibit different thermal properties, requiring careful evaluation of cooling system sizing and control strategies.
Advanced Materials and Manufacturing Techniques in Substation vs Transformer Applications
Core Material Selection and Loss Optimization

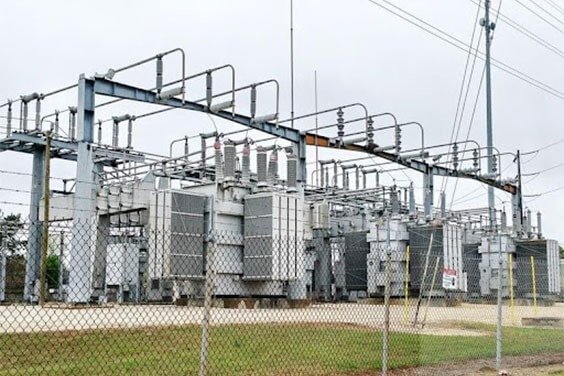

The distinction between substation vs transformer applications becomes particularly evident in core material selection. Substation transformers typically employ higher-grade silicon steel or amorphous metal cores to minimize no-load losses, recognizing their continuous operation at relatively stable loading levels.
Recent developments in domain-refined grain-oriented silicon steel have achieved specific losses below 0.9 W/kg at 1.7 Tesla, representing significant efficiency improvements. These materials, while commanding premium prices, often justify their selection through reduced lifecycle costs, particularly in regions with high energy prices or stringent efficiency regulations.
Manufacturing techniques such as step-lap core construction and laser scribing further reduce core losses while minimizing audible noise, an increasingly important consideration for urban electrical substation transformers. The application of finite element modeling during design phases enables optimization of flux distribution, minimizing localized heating and extending operational life.
Winding Configuration and Insulation Systems
The winding design for substation transformer applications must accommodate multiple, often conflicting requirements. Disk windings offer superior impulse distribution but may exhibit higher eddy losses in large units. Helical windings provide excellent mechanical strength but complicate tap changer integration.
Contemporary designs increasingly employ continuously transposed cable (CTC) conductors, reducing circulating current losses while improving space utilization. The selection of paper insulation systems has evolved from traditional Kraft paper to thermally upgraded variants, extending operational temperature limits and improving moisture tolerance.
Hybrid insulation systems combining solid and liquid dielectrics enable enhanced thermal performance while maintaining dielectric strength. These systems particularly benefit transformers subject to frequent overloading or operating in high ambient temperature environments.
Reliability Engineering and Condition Monitoring Strategies
Dissolved Gas Analysis and Predictive Diagnostics
The implementation of online dissolved gas analysis (DGA) systems has transformed maintenance strategies for electrical transformer substation assets. Continuous monitoring enables early detection of incipient faults, including partial discharge activity, thermal degradation, and arcing phenomena.
Pattern recognition algorithms now interpret DGA results in real-time, differentiating between normal aging processes and active deterioration mechanisms. These systems integrate with broader asset management platforms, enabling risk-based maintenance scheduling and optimized resource allocation.
Advanced diagnostic techniques extend beyond traditional DGA, incorporating frequency response analysis for mechanical integrity assessment and partial discharge monitoring for insulation condition evaluation. The correlation of multiple diagnostic parameters provides comprehensive health assessment, supporting informed decision-making regarding maintenance, refurbishment, or replacement.
Bushing Monitoring and Failure Prevention
Bushing failures represent a significant risk to transformer substation reliability, often resulting in catastrophic failures with extensive collateral damage. Modern monitoring systems continuously track bushing capacitance and power factor, detecting deterioration before failure occurs.
The integration of fiber optic temperature sensors within bushing structures enables direct measurement of conductor temperatures, identifying abnormal heating from poor connections or excessive loading. These measurements, combined with leakage current monitoring, provide comprehensive bushing condition assessment.
Protection System Integration and Coordination Requirements
Differential Protection Schemes
The protection philosophy for electrical substation transformers has evolved significantly with the introduction of numerical relays offering advanced functionality. Modern differential protection schemes incorporate harmonic restraint, preventing misoperation during energization while maintaining sensitivity to internal faults.
Adaptive differential settings adjust operating characteristics based on system conditions, optimizing sensitivity while preventing spurious trips. The integration of restricted earth fault protection provides additional sensitivity for ground faults near the neutral point, complementing overall protection coverage.
Communication-based protection schemes enable coordinated response to system disturbances, minimizing impact on adjacent equipment. These systems incorporate wide-area measurements, enhancing situational awareness and enabling optimized protection settings.
Overcurrent and Earth Fault Coordination
The coordination of overcurrent protection for transformer and substation installations requires careful consideration of transformer damage curves, inrush characteristics, and downstream protection devices. Time-current coordination studies must evaluate multiple operating scenarios, including emergency loading conditions and system reconfigurations.
Digital relay platforms enable complex coordination schemes, incorporating voltage-restrained overcurrent elements and adaptive time delays. These features maintain protection selectivity despite varying system configurations, essential for maintaining service reliability.
Environmental Considerations and Sustainability Initiatives
Noise Mitigation Strategies
Acoustic emissions from electrical substation transformers increasingly concern communities, particularly in urban environments. Transformer noise originates primarily from magnetostrictive forces in the core and electromagnetic forces in windings, with cooling systems contributing additional acoustic energy.
Design modifications including step-lap core construction, optimized clamping pressure, and resonance detuning reduce core-generated noise. Active noise cancellation systems, while complex, offer significant reduction in specific frequency bands, particularly effective for tonal components.
Passive mitigation measures include sound barriers, enclosures, and strategic equipment placement. The selection of appropriate measures requires detailed acoustic modeling, considering site-specific factors including ambient noise levels, propagation paths, and receptor locations.
Lifecycle Assessment and Circular Economy Principles
The environmental impact of substation transformer installations extends beyond operational emissions, encompassing manufacturing, transportation, and end-of-life considerations. Lifecycle assessments increasingly influence equipment selection, favoring designs minimizing environmental footprint.
Material selection prioritizes recyclability, with copper windings and silicon steel cores offering excellent recovery potential. The adoption of biodegradable insulating fluids reduces environmental risk from leaks while simplifying disposal requirements.
Refurbishment programs extend equipment life, reducing resource consumption and waste generation. These programs, incorporating modern monitoring systems and upgraded components, often achieve performance comparable to new installations at reduced environmental impact.
Future Developments and Emerging Technologies
The future of electrical transformer substation technology is one of greater digitalization, efficiency, and resilience. Although only used in a few applications, solid-state transformers offer revolutionary functions such as instantaneous control of voltages and natural limitation of fault current.
More exotic materials such as high temperature superconductors and nanocrystalline cores have potential for increased efficiency, but commercial viability is unclear. With the incorporation of energy storage into substation design, new operational strategies are made possible, such as peak shaving and power quality enhancement.
Digital twin technology can be used to model the behavior of transformers in great detail, facilitating optimized operation and maintenance approaches. Operational data is updated in these models, which forecast performance in different scenarios thus allowing proactive management strategies.
The convergence of operational technology and information technology platforms transforms electrical substation transformers from passive assets to intelligent grid components. The evolution allows dynamic rating control, automatic response to faults, co-ordinated optimisation of systems.
The basics of strong engineering principles do not seem to be altered in the wake of this industry continuously progressing. To succeed, technical requirements and economic limitations must be balanced and the reliability and safety needs should not be neglected. Organizations, which have a thorough knowledge of these complicated interactions, can establish themselves as reliable participants in the development of critical infrastructure.
